Wireless Smart Switch Light
SPECIFICATIONS
Brand Name: ammtoo
Certification: RoHS,FCC,CE,ce,FCC,ROHS
Choice: yes
Current: 10A
Features: 433Mhz
Hign-concerned Chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic
Model Number: rf433
Origin: Mainland China
Switch Type: Push Button Switch
Warranty: 1year
• Wireless Control:Control your lights and fans wirelessly with the included remote control.
• Smart Switch :This switch is designed to be smart, allowing you to easily control your home appliances.
• Easy Installation :The switch is easy to install and can be done in a matter of minutes.
• High Power Capacity :With a current of 10A, this switch can handle high power devices like LED lights and fans.

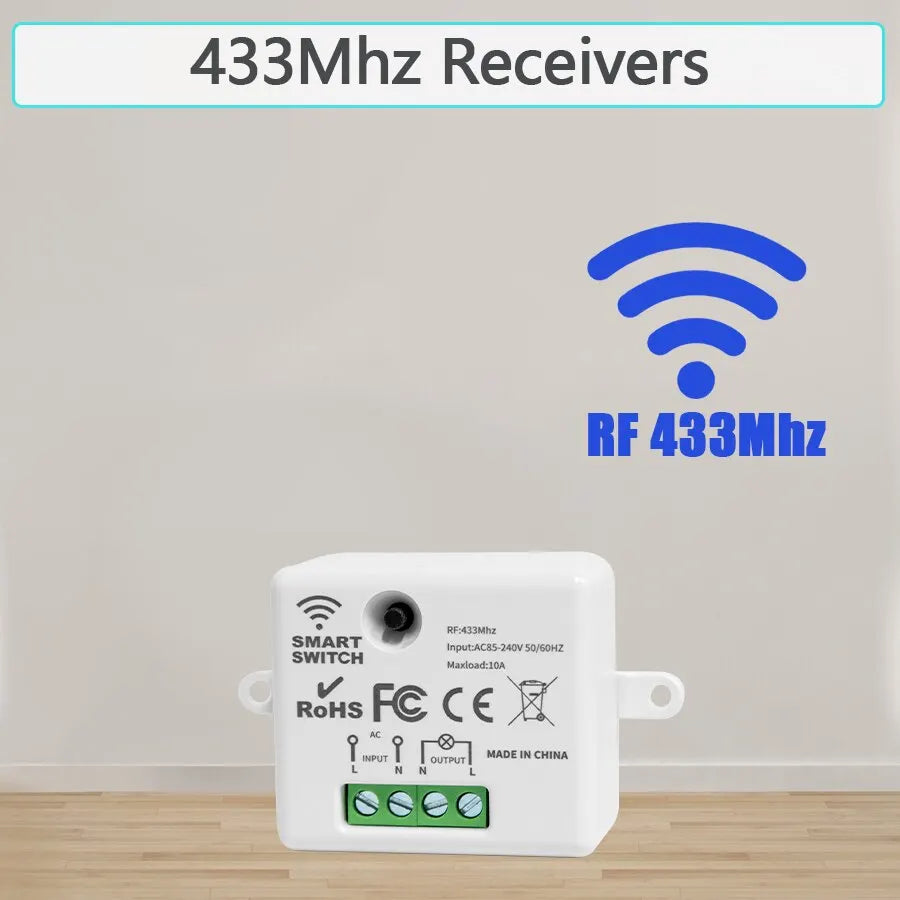

1.Controller (Receiver):
Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way:wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70"C
Size: 47.4*42*22.8 (mm)

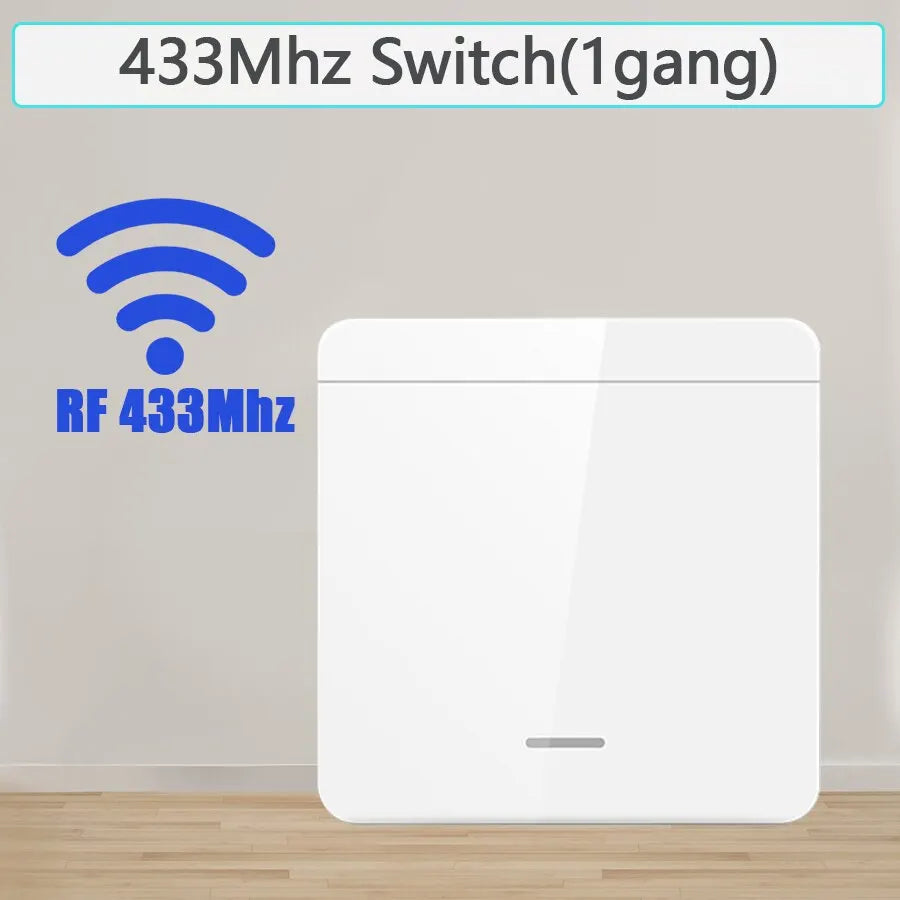

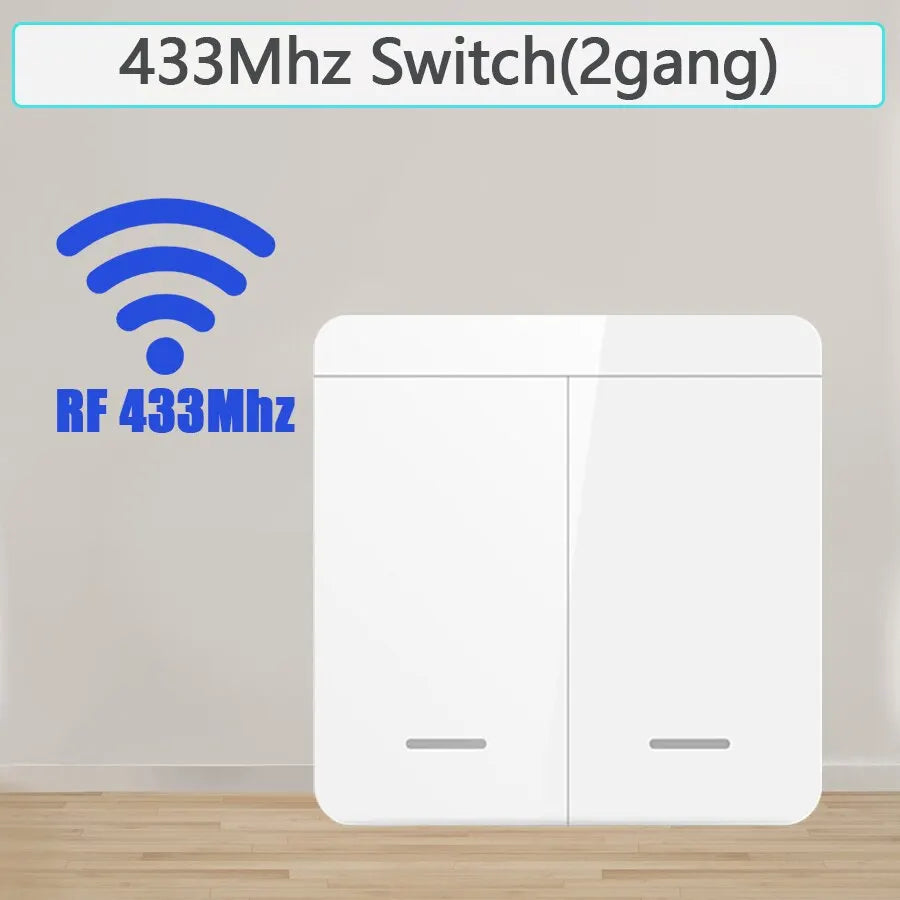

2.Wireless Wall Switch:
Working voltage: DC3.0V
working frequency:433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10"C~+70*C
Size: 86*86*15mm

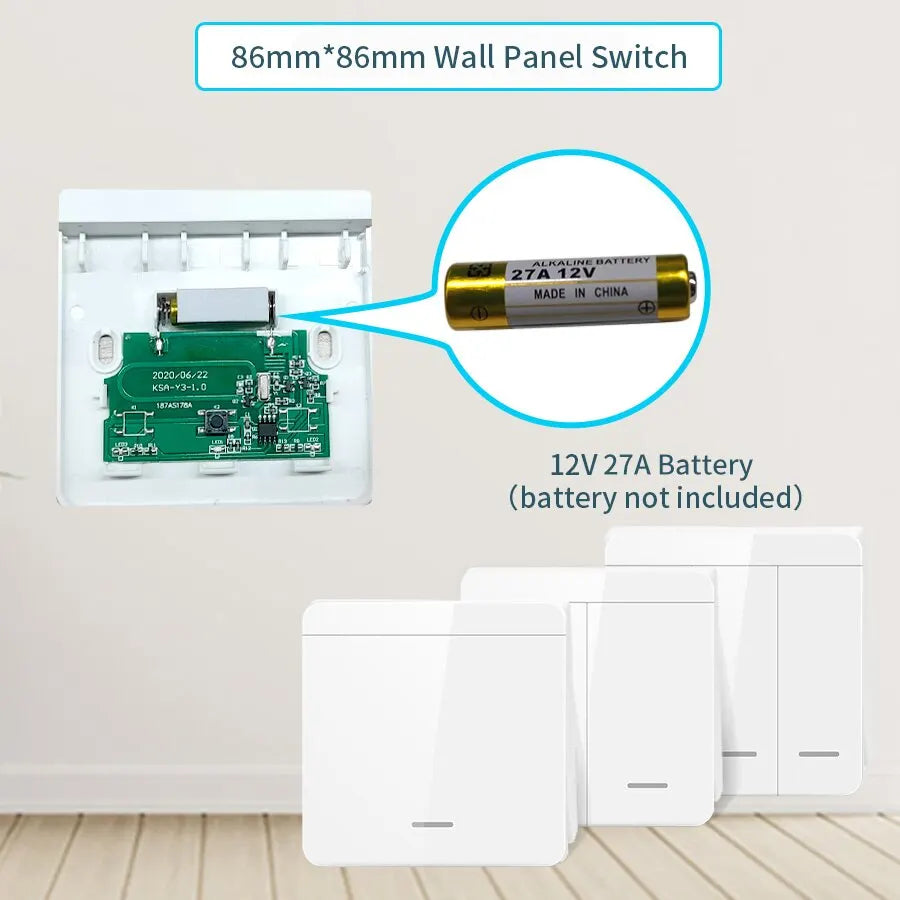

Battery:work with 12V 27A battery(battery not included)
Features：

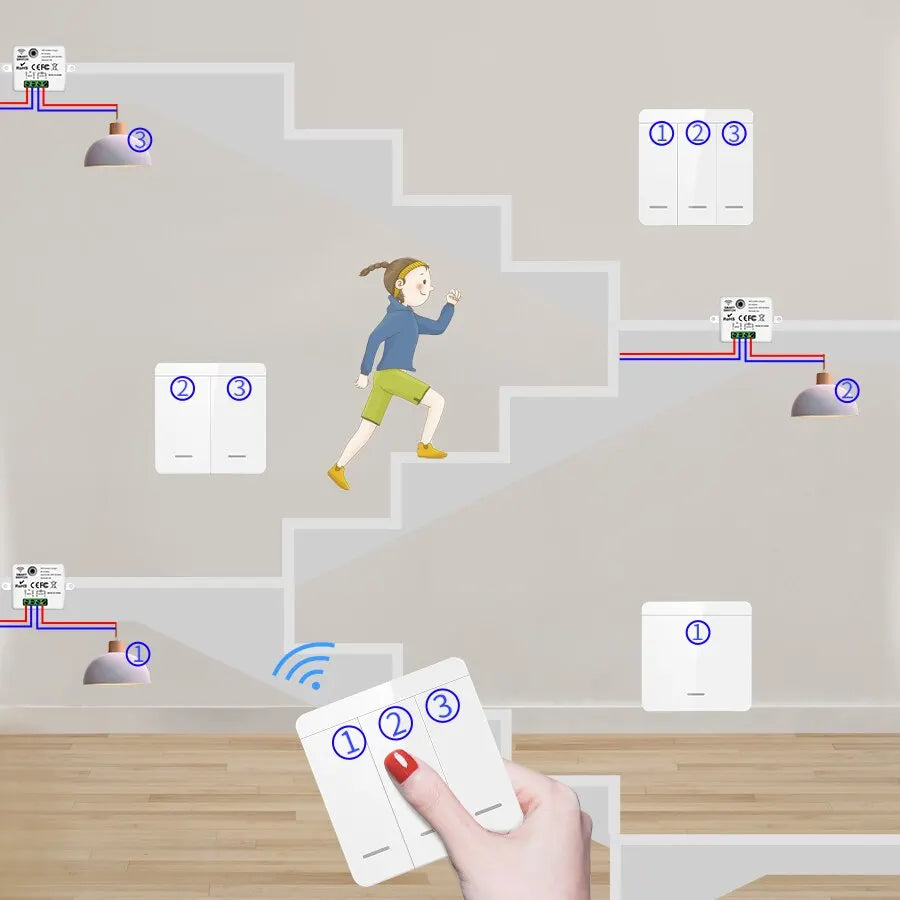

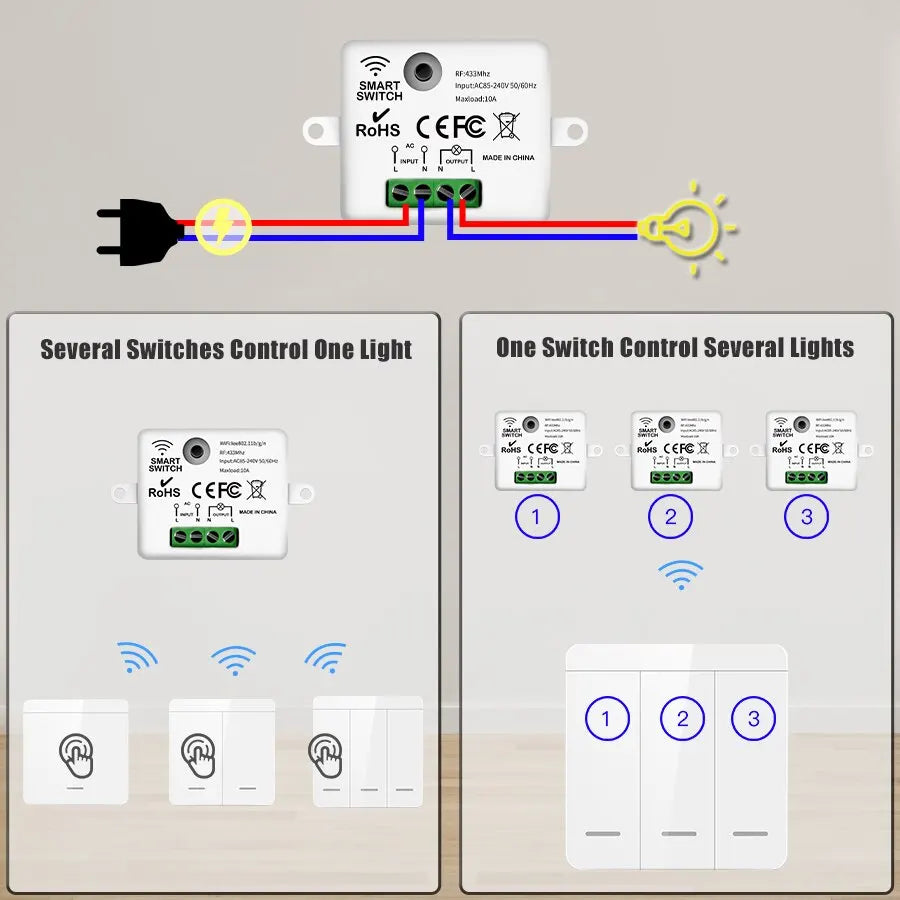

1.Multi switches can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

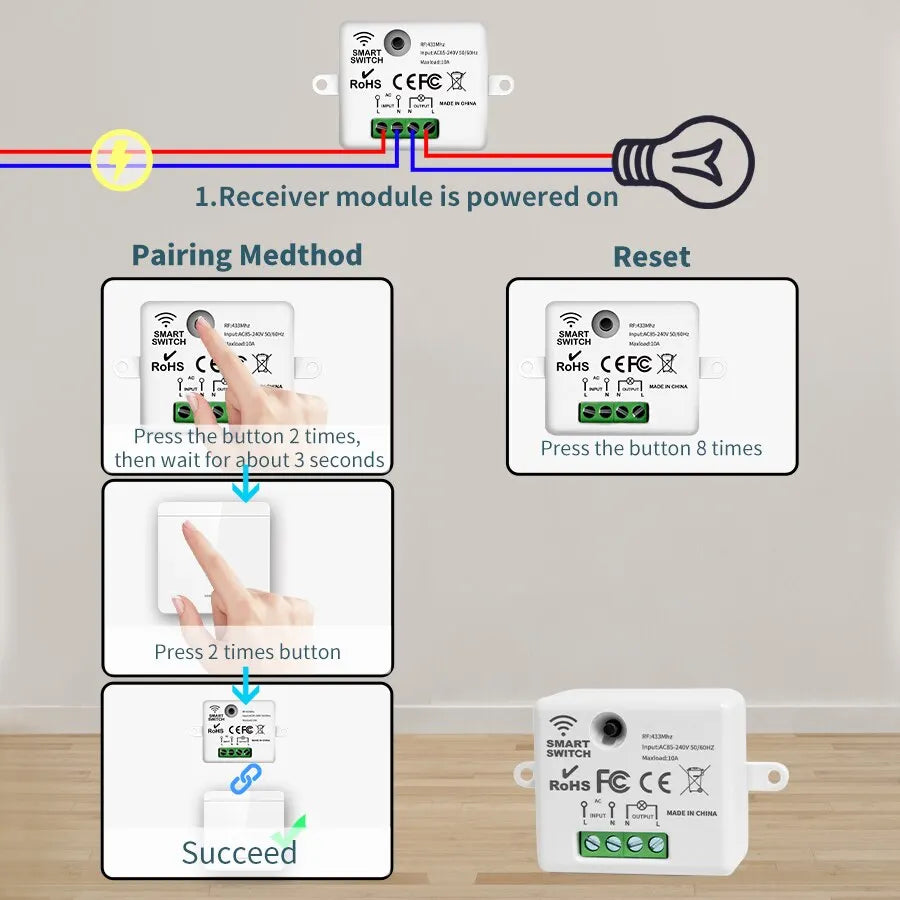

Setting way:
How to get the signal：
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal：
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Note:
Wall switch itself cannot control lights on off.It needs to work with rf receiver together.

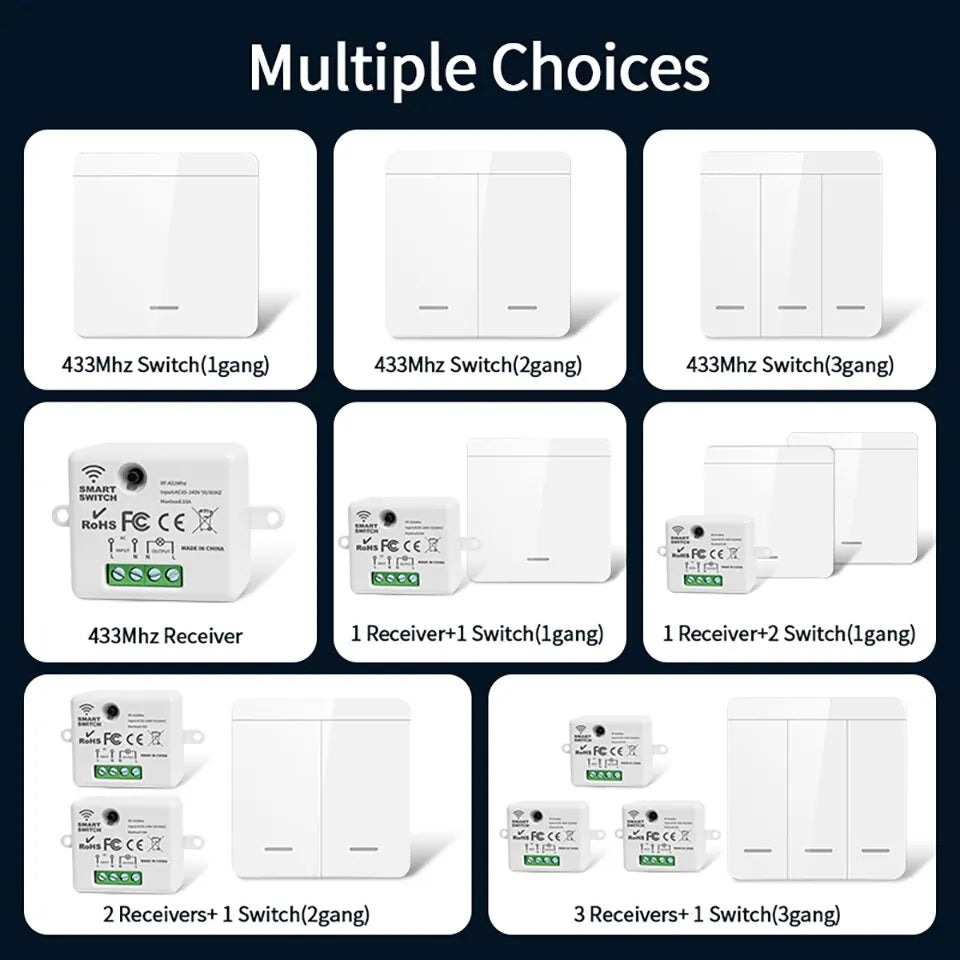

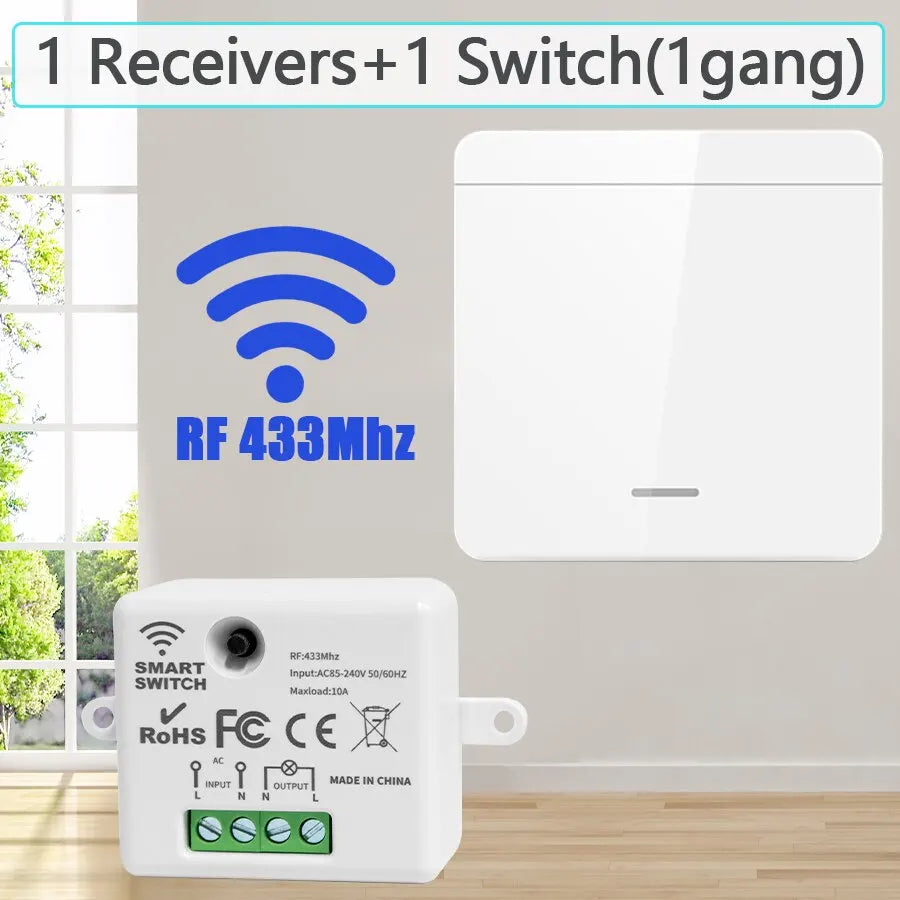

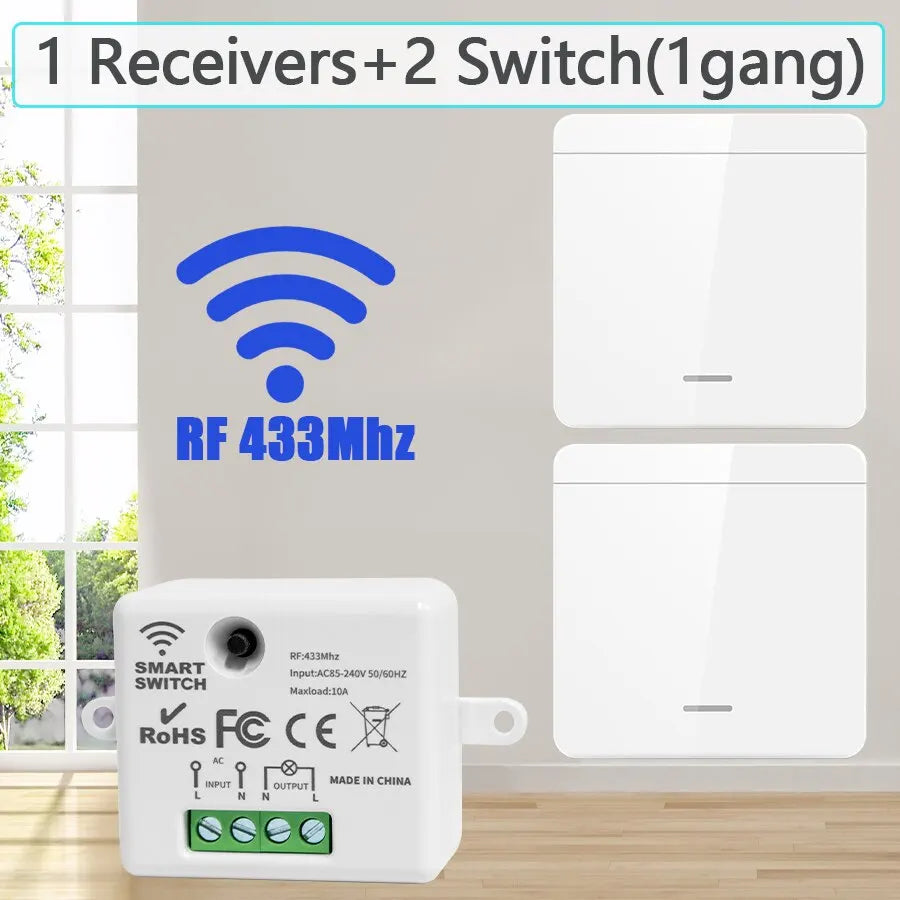

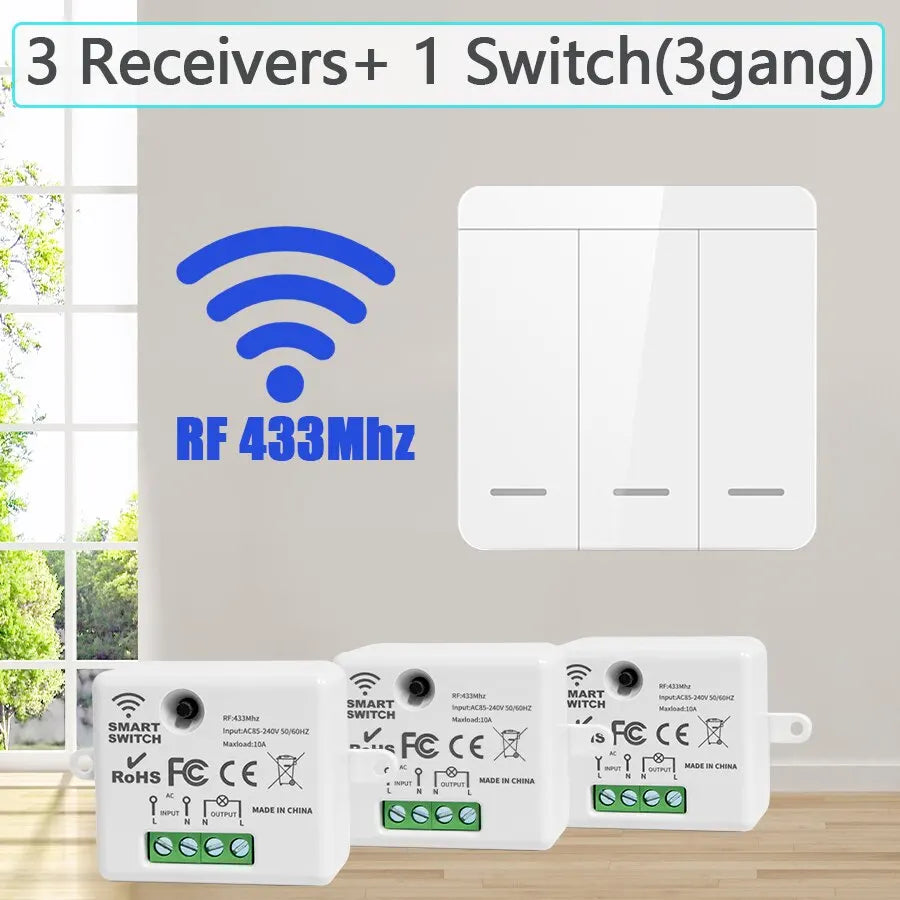

Product list:

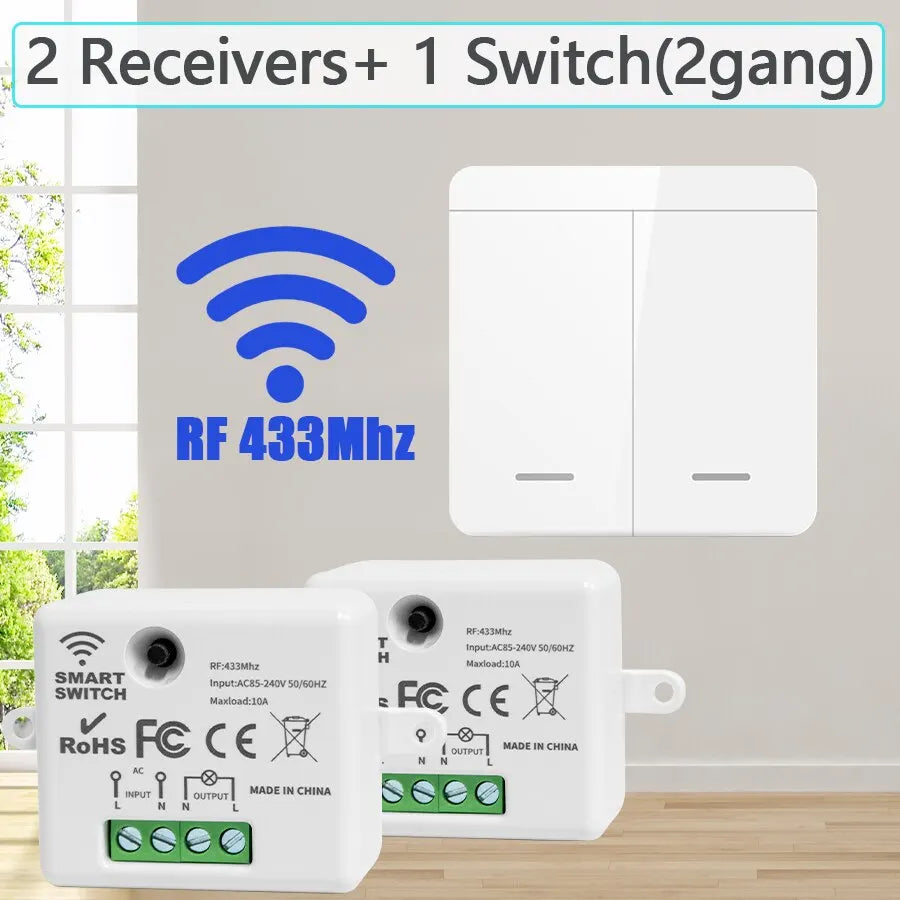

There are various combinations in the options, which are convenient to use, please purchase according to actual needs.
User manual
How to get the signal：
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal：
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
